Slim yet Rugged, Compact yet Bright
The latest in the new generation of PavoSlim LED panel lights – the bi-color PavoSlim 240B feature a convenient foldable design for portability and fast setup, expanding the possibilities for higher power and larger illumination areas. The PavoSlim 240B is remarkably slim and lightweight, yet ruggedly constructed with metal bodies. They have highly accurate color rendering and class-leading output. The PavoSlim 240B will empower creators with more flexible options to achieve their visions.
Through clever design, the metal body of the PavoSlim 240B can be quickly folded and unfolded in seconds. Mounting sockets along the fold on the rear of the fixture are combined with a universal or baby pin holder to ensure that it is securely locked into place when unfolded. This forms a sturdy and durable structure. Users can quickly and assuredly use the PavoSlim 240B and 240C for interviews, in medium-sized studios, and for demanding film and television productions.
Efficient Design, Maximum Output
The Nanlite team has developed a dedicated optical system for the individual emitters of the PavoSlim lights. Combining efficient heat dissipation and excellent optical design, the PavoSlim 240B achieve times output compared to the average output of conventional mat light products.
Rapid Deployment
Every element of the PavoSlim is designed for rapid deployment. Because every minute counts on set, the PavoSlim 240B can be quickly unfolded, secured and locked into place in moments. The accessories are also designed with the same philosophy for easy and rapid set-up.
The back of each PavoSlim 240Bfixture has multiple 1/4"-20 sockets for flexible mounting in various situations. The control unit is designed with compatibility for mounting via a quick-release plate, which can be used with the included quick-release clamp for mounting to light stands or truss (also found on NANLITE Forza II series fixtures). The control unit has a useful hand carry strap which can also be used to hang it from a light stand.
PavoSlim 240B
- CCT Range: 2700K-6500K
- CRI: Average 95 TLCI: Average 97
- TM-30
- Rf: Average 95
- Rg: Average 102
- SSI
- 3200K: 83
- 5600K: 73
PavoSlim 240B is equipped with 12 effects for simulating real scene lighting effects. Various parameters of each effect can be tuned on-board, while more customized settings can be obtained by Nanlink App and DMX/RDM.
Professional Control Options
On the included control unit, all settings are accessed using just two buttons and two knobs, and are clearly displayed on the two-inch screen.
With built-in 2.4G and Bluetooth modules the PavoSlim 240B can be easily connected to the NANLINK 2.0 App. This is a great way to achieve wireless intelligent control for lighting, especially when integrated with other NANLITE tube lights and point source lights. Together they can create diverse and complementary lighting solutions.
Thanks to the DMX/RDM settings the PavoSlim 240Bcan be used with a standard film and TV standard control system, jointly controlled alongside other lighting fixtures in the same DMX network.
Multiple Power Options, Deploy Anywhere
The PavoSlim 240B can be powered by AC power, DC power and V-mount batteries. All power supply methods support full power output, making the PavoSlim 240B suitable for both indoor and outdoor scenarios.
The PavoSlim 240B also supports hot swapping among different power supply modes, allowing for continuous shooting without interruption.
AC power supply, DC power supply, V-mount battery (14.4-14.8V, 26V)*
*Before hot swapping, ensure that the brightness of the PavoSlim 240B/240C is set within the power range of the respective power supply method. The corresponding power output ranges for different power supply methods are as follows:
- 14.4-14.8V V-mount battery × 1: 50% of max output,
- 14.4-14.8V V-mount battery × 2: full power output,
- 26V V-mount battery × 1: 80% of max output,
- 26V V-mount battery × 2: full power output,
- 14.4-14.8V V-mount battery × 1 and 26V V-mount battery × 1: full power output.
The PavoSlim 240B body has a 0.4M DC connection cable attached. This is then joined to the control unit via a 5M DC connection cable.
Foldable Softbox
The PavoSlim 240B comes with the exclusive foldable softbox, which has a folding design for easy installation and removal.
Slender & Durable Case
The included NANLITE carrying bag is thoughtfully designed with a solid structure and logically arranged internal partitions for quick and convenient storage. External reinforced stitching ensures the bag is durable.

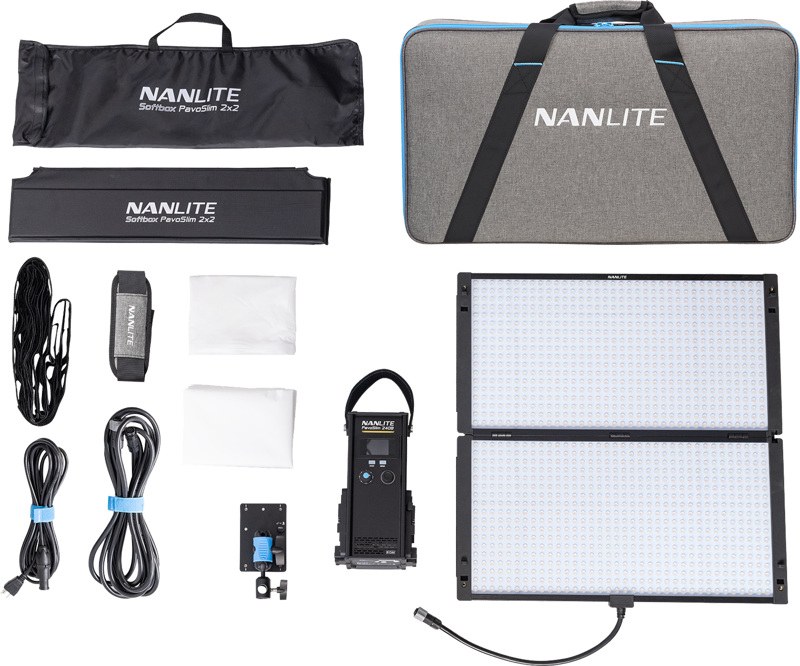

PavoSlim 240B Includes:
- PavoSlim 240B × 1
- Control Unit × 1
- Universal Holder × 1
- DC Connection Cable 5m × 1
- AC Power Cable 4.5m × 1
- Softbox × 1
- Diffuser × 2 (Lite Diffuser × 1+Standard Diffuser × 1)
- Eggcrate × 1
- Carrying Bag × 1
- User Manual × 1
